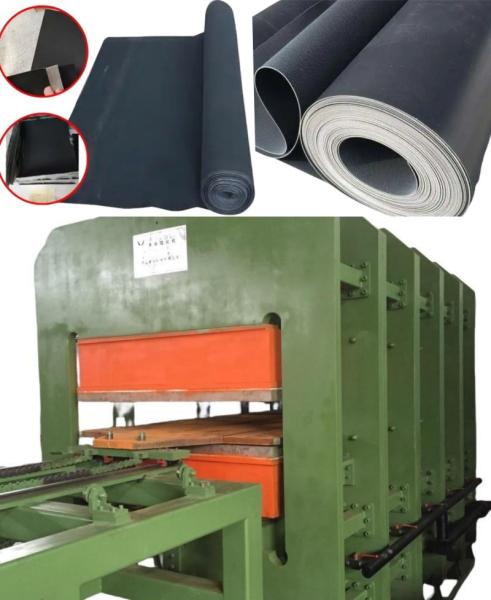

Rubber Frame Flat Plate Hydraulic Vulcanizing Press For Producing EPDM Rubber Waterproofing Materials

Rubber Frame Flat Plate Hydraulic Vulcanizing Press For Producing EPDM Rubber Waterproofing Materials

1. Frame Fabrication
   • The manufacturing process usually starts with the construction of the frame of the vulcanizing machine. The frame provides the structural support and stability. High - strength steel is often used, and the manufacturing machine uses cutting, bending, and welding processes to shape the frame according to the design specifications. The frame must be able to withstand the forces exerted during the vulcanizing process, such as the pressure and heat - related stresses.
2. Platen and Mold System Assembly
   • The manufacturing machine assembles the platens and molds. The platens are usually made of heat - resistant steel. The manufacturing process involves machining the platens to precise dimensions and surface finishes. The molds, which are designed to give the final shape to the waterproof rubber material, are fabricated with high precision. The molds may have complex geometries depending on the type of waterproof product. The manufacturing machine installs the molds onto the platens and ensures their proper alignment.
3. Installation of the Pressure System
   • For the pressure system, if it's a hydraulic system, the manufacturing machine installs a hydraulic pump, cylinders, and a network of valves. The hydraulic pump draws hydraulic fluid from a reservoir and pressurizes it. The cylinders are then used to apply the necessary pressure to the platens. In a pneumatic system, air compressors and pneumatic cylinders are installed. The manufacturing machine configures the pressure system to provide the adjustable and consistent pressure required for vulcanizing rubber waterproof materials.
4. Heating System Integration
   • The heating system of the vulcanizing machine is integrated by the manufacturing machine. Electrical heating elements are installed in the platens or in close proximity to the molds. Temperature sensors are also placed to monitor the temperature. The manufacturing machine wires the heating elements to a temperature - control unit. This unit regulates the power supplied to the heating elements based on the feedback from the temperature sensors to maintain the desired vulcanization temperature.
5. Control System Installation
   • A control system is installed to manage the various parameters of the vulcanizing process. The manufacturing machine mounts a control panel that includes a microprocessor - based controller. This controller allows operators to set and monitor parameters such as pressure, temperature, and vulcanization time. The manufacturing machine also wires the safety features such as emergency stop buttons and over - temperature or over - pressure alarms to the control system.

1. Machining Tools
   • The manufacturing machine includes cutting tools such as laser cutters or plasma cutters for shaping the steel components of the vulcanizing machine's frame. It also has milling machines and lathes for precision machining of the platens and other mechanical parts. These tools ensure that the components are fabricated to the exact dimensions and tolerances required.
2. Welding Equipment
   • Welding equipment is used to join the steel components of the frame. Arc welding or gas - shielded welding processes are commonly employed. The welding equipment must be capable of producing high - quality welds to ensure the structural integrity of the frame.
3. Assembly Fixtures
   • Assembly fixtures are used to hold and align the components during the assembly process. For example, when installing the molds onto the platens, precision - made fixtures ensure that the molds are in the correct position and orientation. These fixtures help to maintain the accuracy of the final product.
4. Electrical and Pneumatic/Hydraulic Components
   • The manufacturing machine stores and installs a variety of electrical components such as motors, relays, and sensors. For the pressure system, it has a stock of hydraulic pumps, cylinders, valves (in case of a hydraulic system), or air compressors and pneumatic cylinders (for a pneumatic system). These components are carefully installed and connected according to the system design.

1. Precision Manufacturing
   • The manufacturing machine allows for the production of vulcanizing machines with high precision. The use of advanced machining and assembly techniques ensures that the components are accurately fabricated and assembled. This precision results in vulcanizing machines that can produce high - quality rubber waterproof materials with consistent properties.
2. Customization
   • It enables the customization of vulcanizing machines according to the specific requirements of different rubber waterproof material manufacturing processes. Manufacturers can adjust the size, pressure, temperature, and other parameters of the vulcanizing machines to meet the needs of various products such as different - thickness roofing membranes or specialized sealing strips.
3. Efficient Production
   • By automating many of the manufacturing steps and using standardized production processes, the manufacturing machine can produce vulcanizing machines more efficiently. This reduces the production time and cost, making it more economically viable to produce a range of vulcanizing machines for different applications.

1. Roofing Industry
   • In the roofing industry, the manufactured vulcanizing machines are used to produce rubber - based roofing membranes. These membranes need to be vulcanized to have the proper waterproof and durability properties. The manufacturing machine helps to produce the vulcanizing equipment that can handle the specific requirements of roofing membrane production, such as large - area processing and specific temperature - pressure settings.
2. Construction Waterproofing
   • For construction waterproofing applications like basement waterproofing and tunnel lining, the vulcanizing machines produced by the manufacturing machine are used to create waterproof seals and coatings. The machines can produce materials with the necessary flexibility and water - resistance to protect structures from water ingress.
3. Industrial Sealing Applications
   • In industrial settings, the vulcanizing machines are used to manufacture sealing materials such as gaskets and O - rings for waterproofing various equipment and machinery. The manufacturing machine enables the production of vulcanizing machines that can meet the precise requirements of these industrial sealing applications.
